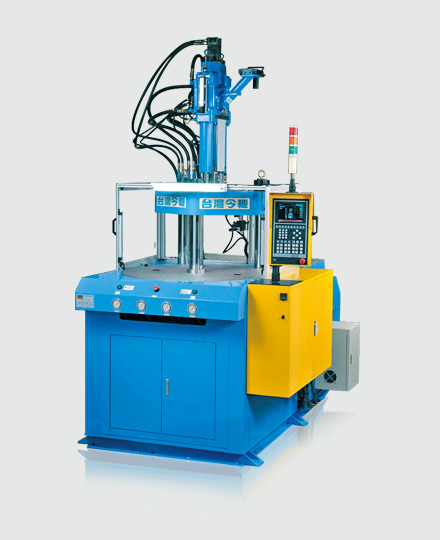

KT-R (Rotary Table) – Rotary Vertical Injection Moulding Machine
Features
- This machine offers a wide range of programmable functions including automatic inclusion, extraction and fully-automatic production.
- Direct-pressure mold clamp allows even injection force, and the relatively low pressure means maximum precision and an incredibly smooth cycle of operation.
- Dual-cylinder injection system offers high injecting pressure for fast operation, making this injection machine your best choice for production of thin items.
- Choose a platen or a rotary plate in accordance with the type of products to be injected, in order to achieve the best possible in feed and injection effects.
- There are also many other control systems that facilitate flexible production and keep costs low while maximizing precision.
- Vertical mold clamping and injection, small footprint and high degree of precision. This Vertical Injection Moulding Machine is ideal for injection of medium and small products with inclusions.
Specification
Machine Type | Unit | KT 150 R | KT 200 R | KT 300 R | KT 400 R | KT 500 R | |||||||||||
Screw Diameter | mm | 20 | 25 | 30 | 25 | 30 | 35 | 30 | 35 | 40 | 35 | 40 | 45 | 50 | 40 | 45 | 50 |
Injection Pressure | kg/cm² | 2730 | 1747 | 1213 | 2509 | 1742 | 1280 | 2170 | 1594 | 1220 | 2171 | 1663 | 1314 | 1064 | 1973 | 1559 | 1263 |
Theoritical Shot Volume | cm³ | 31 | 49 | 71 | 59 | 85 | 115 | 99 | 135 | 176 | 135 | 176 | 223 | 275 | 226 | 286 | 353 |
Max Shot Weight (ps) | g | 29 | 45 | 64 | 54 | 77 | 105 | 90 | 123 | 160 | 123 | 160 | 203 | 250 | 206 | 261 | 321 |
oz | 1 | 1.6 | 2.3 | 1.9 | 2.7 | 3.7 | 3.2 | 4.3 | 5.7 | 4.3 | 5.7 | 7.2 | 8.9 | 7.3 | 9.3 | 11.3 | |
Injection Rate | cm³/sec | 33 | 51 | 73 | 50 | 73 | 99 | 66 | 90 | 118 | 118 | 154 | 195 | 241 | 129 | 175 | 249 |
Screw Stroke | mm | 100 | 120 | 140 | 140 | 180 | |||||||||||
Screw Speed Max | rpm | 0-190 | 0-210 | 0-185 | 0-250 | 0-260 | |||||||||||
Nozzle Contract Force | tons | 2 | 2.4 | 2.6 | 2.9 | 3.3 | |||||||||||
Nozzle Retraction Stroke | mm | 140 | 180 | 200 | 205 | 300 | |||||||||||
Number of Temperature Control | 4 | 4 | 4 | 4 | 5 | ||||||||||||
Material Hopper Capacity | ℓ | 20 | 20 | 20 | 20 | 20 | |||||||||||
Clamping Force | tons | 30 | 45 | 55 | 85 | 120 | |||||||||||
Opening Force | tons | 6.6 | 8.3 | 13.5 | 10.5 | 18.7 | |||||||||||
Platen Size | mm | – | – | – | – | – | |||||||||||
Distance Between Tie Bare | mm | – | – | – | – | – | |||||||||||
Min Mold Height | mm | 100/150 | 150/200 | 250/300 | 200/250 | 350/400 | |||||||||||
Opening Stroke | mm | 180 | 200 | 200 | 250 | 200 | |||||||||||
Max Open Daylight | mm | 280/330 | 350/400 | 450/500 | 450/500 | 550/600 | |||||||||||
Ejector Force | tons | 1.3 | 1.3 | 1.3 | 2.3 | 4.8 | |||||||||||
Ejector Stroke | mm | 50 | 50 | 50 | 75 | 75 | |||||||||||
Rotary Table Diameter | mm | Ø650 | Ø740 | Ø880 | Ø1000 | Ø1200 | |||||||||||
Rotary station | 2 − 3 | 2 − 4 | 2 − 4 | 2 − 4 | 2 − 4 | ||||||||||||
Max.Mold Weight | kg | 70 X 2 / 45 X 3 | 90 X 2 / 80 X 3 | 90 X 2 / 80 X 3 | 150 X 2 / 100 X 3 | 200 X 2 / 150 X 3 | |||||||||||
Station Accuracy | mm | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | |||||||||||
Max. Hydraulic Pressure | kg/cm2 | 140 | 140 | 140 | 140 | 140 | |||||||||||
Pump Output | cm3/rev | 33-12 | 47-14 | 53-14 | 94-17 | 116-17 | |||||||||||
Oil Reservoir Capacity | ltr | 150 | 200 | 250 | 300 | 550 | |||||||||||
Cooling Water Consumption | ltr/hr | 800-1200 | 1000-1400 | 1100-1600 | 2000-2800 | 3200-4000 | |||||||||||
Pump Motor Power | kw | 5.5 | 7.5 | 11 | 15 | 18.5 | |||||||||||
Barrel Heating Power | kw | 2.7 | 3.5 | 4.5 | 5.6 | 7.5 | |||||||||||
Total Wattage | kw | 8.2 | 11 | 15.5 | 20.3 | 26 | |||||||||||
Machine weight | tons | 1.5 | 2.6 | 3.1 | 4.1 | 7.1 | |||||||||||
Machine Dimensions (LxWxH) | mtr | 2.3×1.2×2.6 | 2.4×1.5×2.8 | 2.5×1.6×3 | 2.8×1.6×2.8 | 2.7x2x3.33 | |||||||||||
