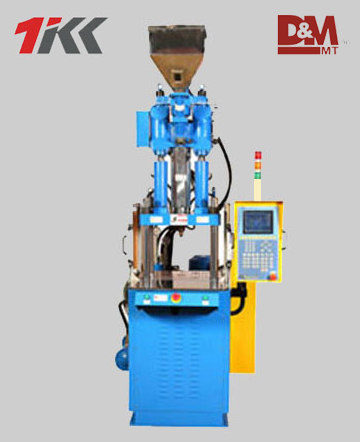

KT Standard – Vertical Injection Molding Machine
Features
  • Vertical mold clamping and injection, small footprint and high degree of precision. This Thermoset Injection Moulding Machine is ideal for injection of medium and small products with inclusions.
  • Dual-cylinder injection system offers high injecting pressure for fast operation, making this injection machine your best choice for production of thin items.
  • Direct-pressure mold clamp allows even injection force, and the relatively low pressure means maximum precision and an incredibly smooth cycle of operation.
  • Choose a platen or a rotary plate in accordance with the type of products to be injected, in order to achieve the best possible in feed and injection effects.
  • Thermoset Injection Moulding Machine offers a wide range of programmable functions including automatic inclusion, extraction and fully-automatic production.
  • There are also many other control systems that facilitate flexible production and keep costs low while maximizing precision.
Specification

Machine Type

Unit

K-2S

K-4S

KT-200-D(DM)

KT-300-D(DM)

KT-400-D(DM)

KT-500-D(DM)

Screw Diameter

mm

20

25

20

25

20

25

30

25

30

35

30

35

40

35

40

45

50

Injection Pressure

kg/cm²

2240

1434

2240

1434

2730

1747

1213

2509

1742

1280

2170

1594

1221

2171

1663

1314

1064

Theoritical Shot Volume

cm3

31

49

31

49

31

49

71

59

85

115

99

135

176

135

176

223

275

Max Shot Weight (ps)

g

29

45

29

45

29

45

64

54

77

105

90

123

160

123

160

203

250

oz

1

1.5

1

1.5

1

1.6

2.3

1.9

2.7

3.7

3.2

4.3

5.7

4.3

5.7

7.2

8.9

Injection Rate

cm³/sec

23

36

23

36

25

40

57

42

61

83

51

70

92

95

124

157

193

Screw Stroke

mm

100

100

100

120

140

140

Screw Speed Max

rpm

0-138

0-138

0-149

0-183

0-150

0-250

Nozzle Contract Force

tons

–

–

2.0

2.4

2.6

2.9

Nozzle Retraction Stroke

mm

–

–

140

180

200

205

Number of Temperature Control

–

2

2

4

4

4

4

Material Hopper Capacity

 ℓ

15

15

20

20

30

30

Clamping Force

 tons

15

15

30

45

55

85

Opening Force

 tons

7

7

6.6

8.4

13.5

10.5

Upper Platen Size

 mm

215 × 170

215 × 170

480 × 355

530 × 380

650 × 490

740 × 500

Distance Between Tie Bare

 mm

250

250

355 × 205

400 × 250

500 × 340

560 × 320

Min Mold Height

 mm

100/40

100/40

160/100

210/150

260/200

250/200

Opening Stroke

 mm

160

160

180

200

200

250

Max Open Daylight

 mm

260/200

260/200

340/280

410/350

460/400

500/450

Ejector Force

tons

1.3/1.3

1.3/1.3


1.3/1.3

1.3/1.3

1.3

3.3

Ejector Stroke

mm

40

40

35

45

35

75

Slide Stroke

mm

260

260

350

420

500

500

Max. Mold Weight

kg

60

60

90


120

150

200

Station Clearance

mm

–

–


–


–


–


–

Max.Hydraulic Pressure

kg/cm²

140

140

140


140

140


140


Pump Output

cm³/rev

19

19

26

39

47

76

Oil Reservoir Capacity

litres

100

100

150

200

200(250)

250(350)

Cooling Water Consumption

litres/hr

400-600

400-600

600-1000

800-1600

2000-2800

2000-2800

Pump Motor Power

kw

2.2

2.2

3.7

5.5

7.5

11

Barrel Heating Power

kw

2

2

2.7

3.5

4.5

5.6

Total Wattage

kw

4.2

4.2

6.4

9

12

16.6

Machine Weight

tons

0.5/0.55

0.5/0.55

1.1/1.2/1.3


1.4/1.5/1.6

2.1/2.3/2.5

3.5

Machine Dimensions          (L × W × H)

m

1.3×0.8×2.1

1.3×0.8×2.1

1.6×1.24×2

1.7×1.35×2.2

2.0×1.3×3.2

2.5×1.5×3.6

Shipping Weight

tons

0.75/0.85

0.75/0.85

1.3/1.5/1.9

1.7/1.9/2.1

2.6/2.9/3.2

5.1/5.6/5.8

Shipping Measurements

(L × W × H)

m

1.6×1.0×2.23

1.6×1.0×2.23

1.8×1.45×2.1

1.9×1.5×2.2

2.1×1.7×3.5

4.2×2.6×1.7
